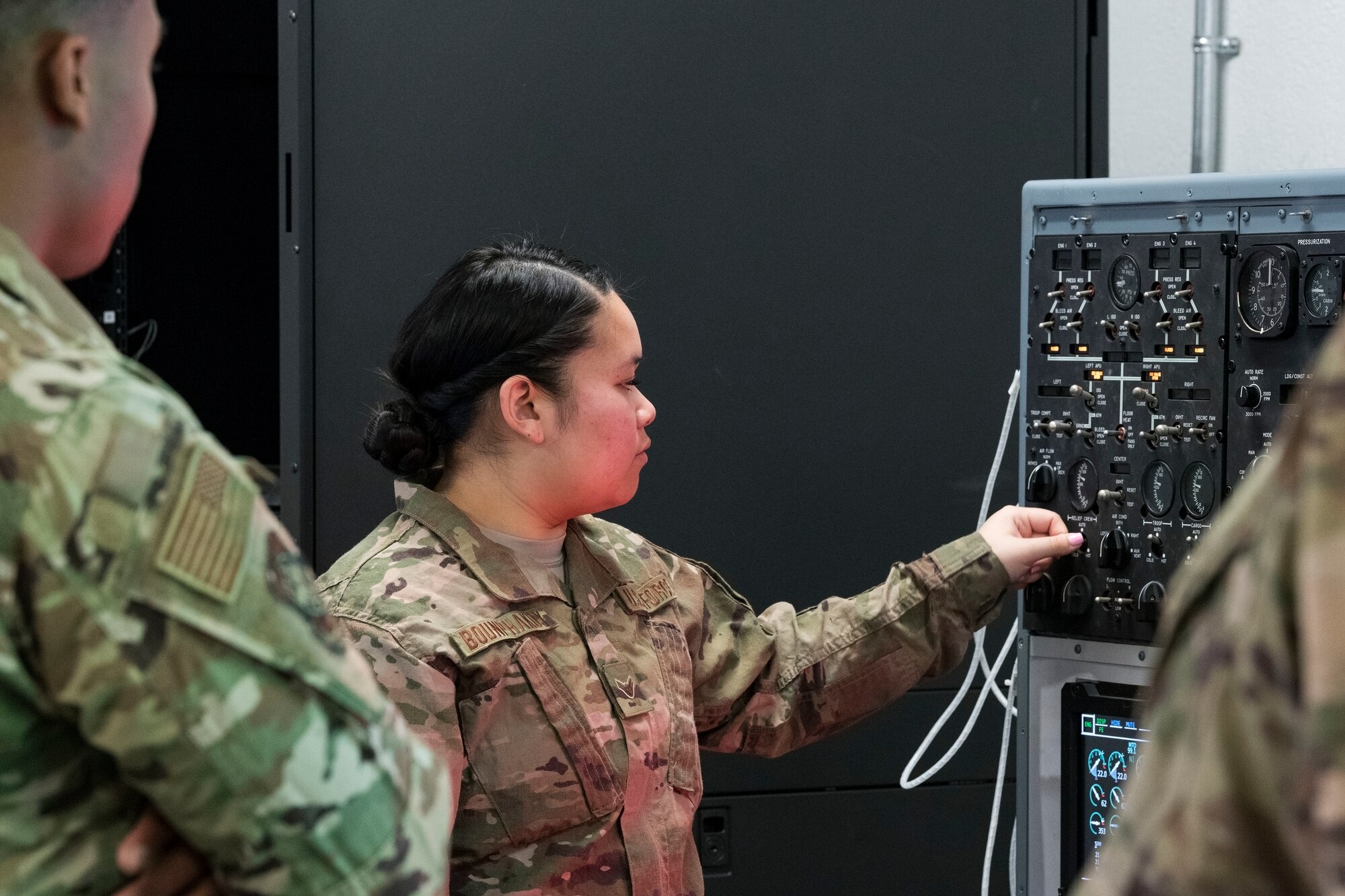

Aircraft Electrical and Environmental Systems journeyman Airman 1st Class Ketsana Bounphakdy, 305th Aircraft Maintenance Squadron, Joint Base McGuire-Dix-Lakehurst, N.J., adjusts a temperature selection switch on the C-5 Air Conditioning and Pressurization Systems Trainer Feb. 20, 2019, at the 373rd Training Squadron, Detachment 3, on Dover Air Force Base, Del. The AC & PST visually allowed Bounphakdy and other students to see what occurs when switches and knobs are moved on the flight engineer’s control panel. (U.S. Air Force photo by Roland Balik)

Aircraft Electrical and Environmental Systems journeyman Airman 1st Class Ketsana Bounphakdy, 305th Aircraft Maintenance Squadron, Joint Base McGuire-Dix-Lakehurst, N.J., adjusts a temperature selection switch on the C-5 Air Conditioning and Pressurization Systems Trainer Feb. 20, 2019, at the 373rd Training Squadron, Detachment 3, on Dover Air Force Base, Del. The AC & PST visually allowed Bounphakdy and other students to see what occurs when switches and knobs are moved on the flight engineer’s control panel. (U.S. Air Force photo by Roland Balik)

Aircraft Electrical and Environmental Systems journeyman Senior Airman Corey Wiggins, 437th Aircraft Maintenance Squadron, Joint Base Charleston, S.C., adjusts a temperature adjustment knob on the C-5 Air Conditioning and Pressurization Systems Trainer Feb. 20, 2019, at the 373rd Training Squadron, Detachment 3, on Dover Air Force Base, Del. The AC & PST visually allowed Wiggins and other students to see what occurs when switches are moved on the flight engineer’s control panel. On the right, Staff Sgt. Jose Cardona, 373rd TRS, Det 3, C-5M Electrical and Environmental Systems instructor, monitored knob movement initiated by Wiggins on the Interactive Multimedia Instruction tablet.(U.S. Air Force photo by Roland Balik)

Aircraft Electrical and Environmental Systems journeyman Senior Airman Corey Wiggins, 437th Aircraft Maintenance Squadron, Joint Base Charleston, S.C., adjusts a temperature adjustment knob on the C-5 Air Conditioning and Pressurization Systems Trainer Feb. 20, 2019, at the 373rd Training Squadron, Detachment 3, on Dover Air Force Base, Del. The AC & PST visually allowed Wiggins and other students to see what occurs when switches are moved on the flight engineer’s control panel. On the right, Staff Sgt. Jose Cardona, 373rd TRS, Det 3, C-5M Electrical and Environmental Systems instructor, monitored knob movement initiated by Wiggins on the Interactive Multimedia Instruction tablet.(U.S. Air Force photo by Roland Balik)

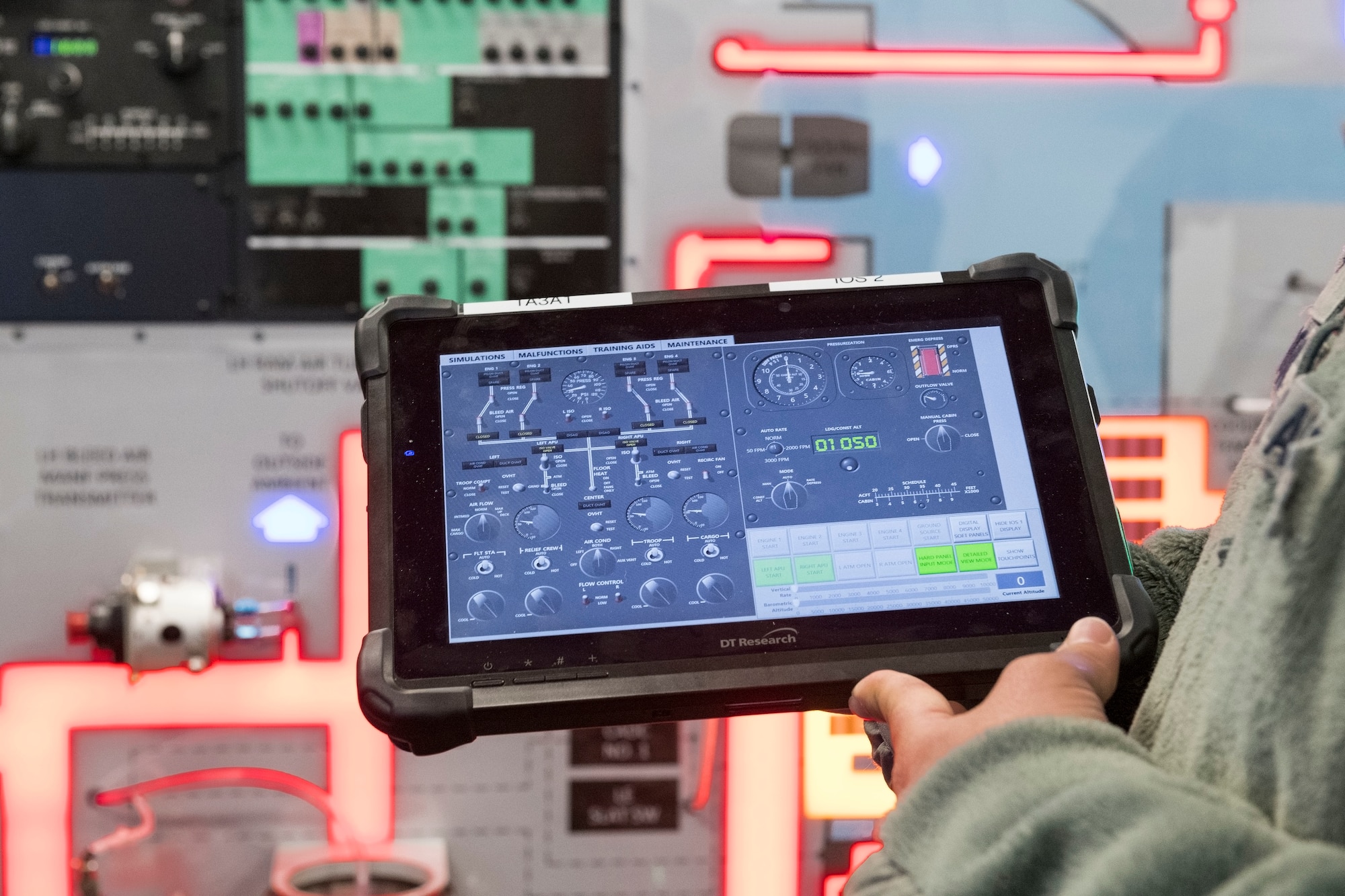

Staff Sgt. Jose Cardona, 373rd Training Squadron, Detachment 3, C-5M Electrical and Environmental Systems instructor, holds the Interactive Multimedia Instruction tablet for the C-5 Air Conditioning and Pressurization Systems Trainer Feb. 20, 2019, at the 373rd TRS, Det 3, on Dover Air Force Base, Del. The IMI allows Cardona to train students on the AC & PST by monitoring actions, inputting malfunctions and simulating on-the-ground or inflight scenarios.(U.S. Air Force photo by Roland Balik)

Staff Sgt. Jose Cardona, 373rd Training Squadron, Detachment 3, C-5M Electrical and Environmental Systems instructor, holds the Interactive Multimedia Instruction tablet for the C-5 Air Conditioning and Pressurization Systems Trainer Feb. 20, 2019, at the 373rd TRS, Det 3, on Dover Air Force Base, Del. The IMI allows Cardona to train students on the AC & PST by monitoring actions, inputting malfunctions and simulating on-the-ground or inflight scenarios.(U.S. Air Force photo by Roland Balik)

Students watch as Staff Sgt. Jose Cardona, 373rd Training Squadron, Detachment 3, C-5M Electrical and Environmental Systems instructor, uses the Interactive Multimedia Instruction tablet for the C-5 Air Conditioning and Pressurization Systems Trainer in conjunction with an interactive schematic of the C-5M environmental and pressurization system Feb. 20, 2019, at the 373rd TRS, Det 3, on Dover Air Force Base, Del. The IMI and schematic allows Cardona to train students on the AC & PST by monitoring actions, inputting malfunctions and simulating on-the-ground or inflight scenarios. (U.S. Air Force photo by Roland Balik)

Students watch as Staff Sgt. Jose Cardona, 373rd Training Squadron, Detachment 3, C-5M Electrical and Environmental Systems instructor, uses the Interactive Multimedia Instruction tablet for the C-5 Air Conditioning and Pressurization Systems Trainer in conjunction with an interactive schematic of the C-5M environmental and pressurization system Feb. 20, 2019, at the 373rd TRS, Det 3, on Dover Air Force Base, Del. The IMI and schematic allows Cardona to train students on the AC & PST by monitoring actions, inputting malfunctions and simulating on-the-ground or inflight scenarios. (U.S. Air Force photo by Roland Balik)

An 82-inch monitor displays an interactive schematic of the C-5M environmental and pressurization system Feb. 20, 2019, at the 373rd Training Squadron, Detachment 3, on Dover Air Force Base, Del. The schematic, which is controlled by a handheld Interactive Multimedia Instruction tablet, allows an instructor to train students on the C-5 Air Conditioning and Pressurization Systems Trainer by monitoring actions, inputting malfunctions and simulating on-the-ground or inflight scenarios. (U.S. Air Force photo by Roland Balik)

An 82-inch monitor displays an interactive schematic of the C-5M environmental and pressurization system Feb. 20, 2019, at the 373rd Training Squadron, Detachment 3, on Dover Air Force Base, Del. The schematic, which is controlled by a handheld Interactive Multimedia Instruction tablet, allows an instructor to train students on the C-5 Air Conditioning and Pressurization Systems Trainer by monitoring actions, inputting malfunctions and simulating on-the-ground or inflight scenarios. (U.S. Air Force photo by Roland Balik)

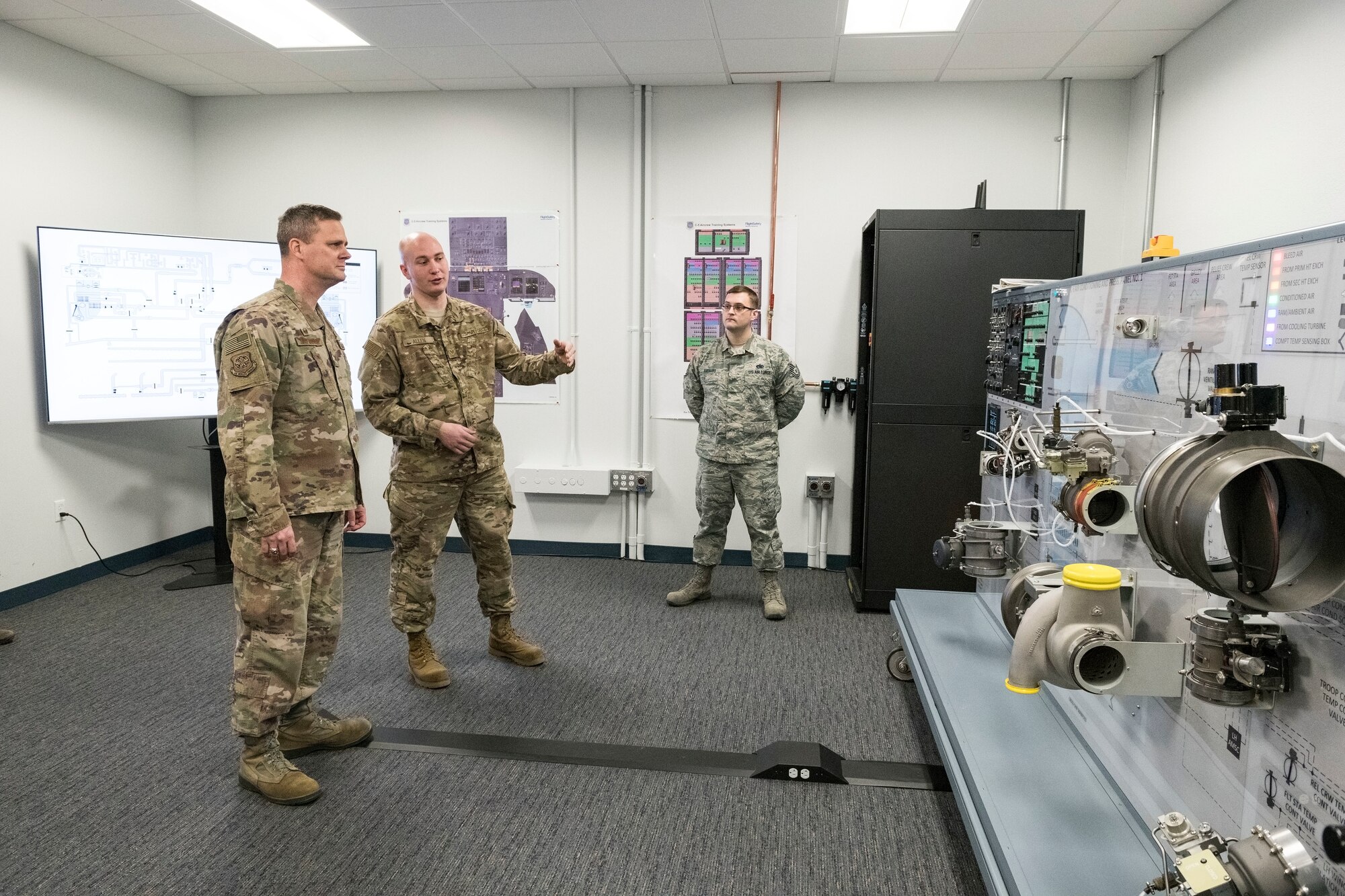

From left to right, Col. Joel Safranek, 436th Airlift Wing commander, listens to Staff Sgt. Damien Allen, 373rd Training Squadron, Detachment 3, C-5M trainer development and subject matter expert, explain the history and process of updating both of the legacy C-5 Air Conditioning and Pressurization Systems Trainers Feb. 20, 2019, at the 373rd Training Squadron, Detachment 3, on Dover Air Force Base, Del. The upgraded AC & PSTs are valued at $5.9 million dollars each and took 12 months to convert to the C-5M Super Galaxy configuration. (U.S. Air Force photo by Roland Balik)

From left to right, Col. Joel Safranek, 436th Airlift Wing commander, listens to Staff Sgt. Damien Allen, 373rd Training Squadron, Detachment 3, C-5M trainer development and subject matter expert, explain the history and process of updating both of the legacy C-5 Air Conditioning and Pressurization Systems Trainers Feb. 20, 2019, at the 373rd Training Squadron, Detachment 3, on Dover Air Force Base, Del. The upgraded AC & PSTs are valued at $5.9 million dollars each and took 12 months to convert to the C-5M Super Galaxy configuration. (U.S. Air Force photo by Roland Balik)

DOVER AIR FORCE BASE, Del. -- Aircraft Electrical and Environmental System maintainers from the 373rd Training Squadron, Detachment 3, here on base, are learning about a specific C-5 aircraft system on a maintenance trainer delivered by Lockheed back in 1972 – way before any of them were born.

In 2015, the legacy C-5A/B Air Conditioning and Pressurization Systems Trainer at the Det was forecasted for discarding, but strong advocacy though various Air Mobility Command leadership channels saved the trainers. A second trainer is located at Travis AFB, California.

Fortunately for current and future maintainers, the legacy C-5A/B AC & PST has been upgraded and configured with current C-5M Super Galaxy components and instrumentation.

Leading the upgrade initiative at the Det were Samuel Stiles, 436th Maintenance Group C-5M project officer and contractor officer representative; Tech. Sgt. Harold Richard, C-5M trainer development NCO in charge, and Staff Sgt. Damien Allen, C-5M trainer development and subject matter expert, both assigned to the 373rd TRS, Det 3.

“The trainers in the upgraded configuration are valued at $5.9 million dollars each,” said Stiles. “The contracted project included two AC & PST's located at Dover and Travis AFBs, and the conversion upgrade project for the two trainers were completed in 12 months.”

The scope of the project focused on design approaches to satisfy multiple agencies’ curriculum training objectives. The trainer includes C-5M aircraft components and simulated parts that meet form, fit and function capabilities.

“The previous trainer was a C-5A/B model training device,” said Richard. “It had a lot of analog and older displays that were basically obsolete, and the recent modifications brought it up to a newer generation of technology.”

The new C-5M trainer consists of three major components: the Interactive Multimedia Instruction handheld tablet, the C-5 AC & PST consisting of two panels containing system hardware and an 82-inch monitor for visual instruction.

“So what this trainer brings to the table is, that allows us to incorporate IMI with the hardware trainer,” said Richard. “This gives the student a unique perspective on how the aircraft systems operate as well as allowing them to troubleshoot malfunctions and learn theory of operation.”

The interactive multi-media products are extracts from the aircraft Technical Orders that can be activated by trainer inputs or from simulated panels. This reinforcement approach creates a repetitive learning environment based on aircraft configurations and extracts it from supporting T.O.s.

“The AC & PST's at each location will have an annual average of 1000 hours of academic instruction,” said Stiles. “The upgrade conversion and configuration changes will make the trainers more accessible to multiple training agencies. The primary training agencies are Air Education and Training Command (AETC) and Maintenance Qualification Training Program (MQTP). The improvements will create additional training capability opportunities for C-5M aircrew, Regional Training Centers (RTCs), Contingency Response Wings (CRWs) and Air Force Reserve and Guard commands.”

The trainer will move training from a critical resource, the C-5M aircraft, and place it in a controlled environment that will maximize benefits to the student and instructor.

“Without this trainer, the instruction would be solely reliant on paper technical data and theory,” said Richard. “The aircraft, due to its confined spaces where all these components are located, is not conducive to a training environment. So this allows us to see all these components – how they interact and move without having the limitations of the aircraft.”

The 436th Civil Engineer Squadron installed an air tank and air lines that supply air pressure to AC & PST components, allowing them to operate as if they were on the aircraft.

The AC & PSTs will ensure the C-5M will have a training medium to develop highly qualified technicians throughout the life cycle of the aircraft, which is tentatively estimated through 2045.
